with CE blue roof and wall panel roll forming machine/roll former WLFM18-76-760/836/988

  • 1 - 14 Sets
    $25,000.00
  • >=15 Sets
    $15,000.00
Model Number:
WLFM18-76-760/836/988
Power(W):
7kw
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Type:
Wall and Roofing Accessories
Production Capacity:
12-15m/min
Certification:
CE ISO
Condition:
New
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
Willing
Voltage:
380V or as your requirement
Weight:
about 5T
Use:
Roof
Dimension(L*W*H):
6500*1300*1100
Tile Type:
Colored Glaze Steel
Applicable Industries:
Building Material Shops
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Color:
As your requirement
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Packed by bundle or as customers' requirements and shipped by container.
Main body of machine nake loaded into container and is covered with plastic film, spare parts in wooden box.
Packing with protection foaming.
Port
Shanghai or Ningbo

Machines can be designed according to your requirement or the profile you provide.



1.Product name

WLFM18-76-760/836/988 Roll former

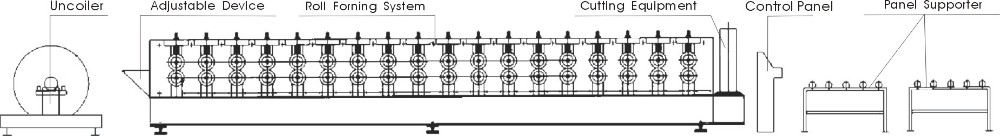

2. Working flow



Uncoiling→Sheet Guiding→Roll Forming→Measuring Length →Cutting the panel → Sheet to Support Table.



process sketch.jpg



3. Technical parameters



Material Spec

Colored and galvanized steel sheet (Q235)
Coil thickness0.30~0.80mm
Coil width914mm/1000mm/1200mm
Working speed10~12m/(cutting time is not included)
Cutting tolerance≤±2.5mm ( length ≤5000mm )
≤±3.0mm (5000mm <length ≤10000mm)
Power requirementMain motor power: 4Kw
Hydraulic station power: 3Kw
5 tons manual un-coiler       Max. capacity: 5000kgs; Inner Dia.: 508mm
Main roller quantityAround 17 stands
Type of cuttingRoll-formed and length-set cutting
Voltage380V 3phase 50HZ or as customers' requirements
Main body dimension9000*1500*1400mm

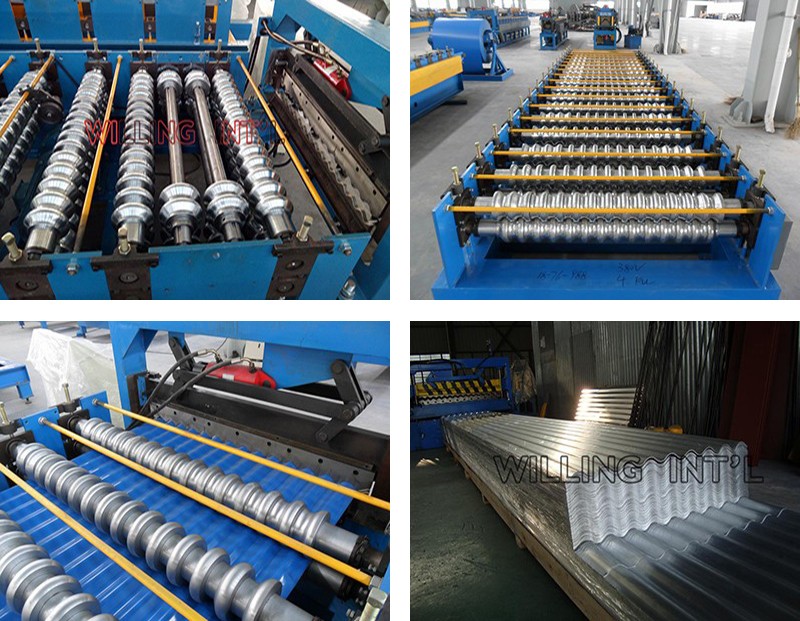

4. Machine pictures




5.Other machines



Hot sale with CE blue double layer roll forming machineHot sale with CE blue double layer roll forming machineHot sale with CE blue double layer roll forming machine
Hot sale with CE blue double layer roll forming machineHot sale with CE blue double layer roll forming machineHot sale with CE blue double layer roll forming machine
Hot sale with CE blue double layer roll forming machineHot sale with CE blue double layer roll forming machineHot sale with CE blue double layer roll forming machine

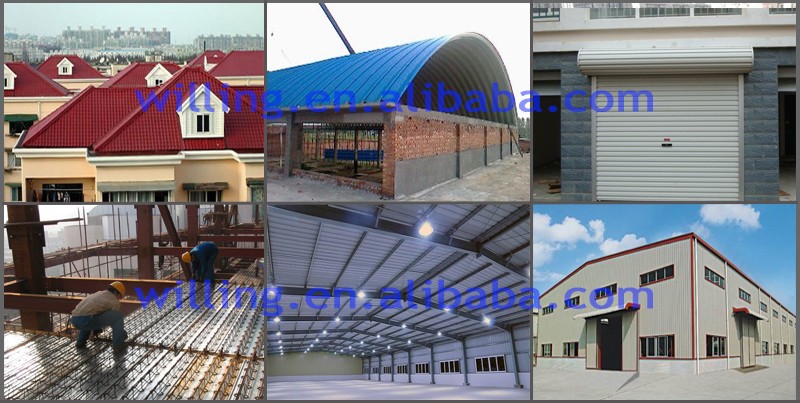

6.Scene application

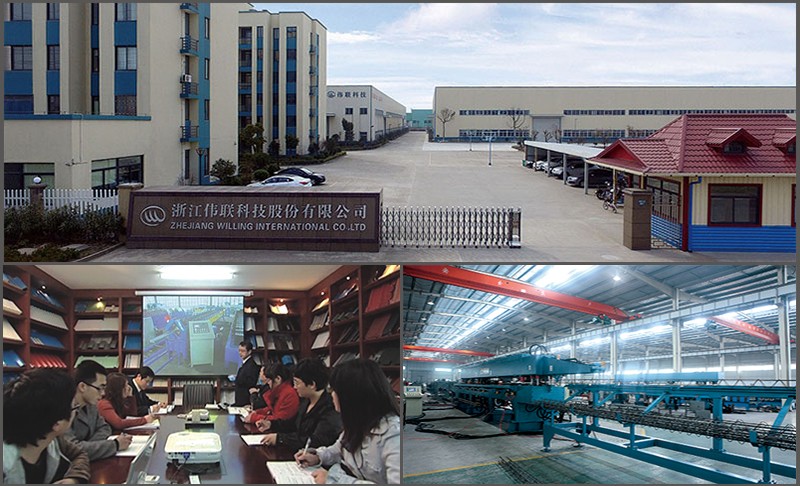

7.Our factory




8.Introduction
We can design and manufacture various types of machines according to the customers' requirement and we could provide technical guidance, production, installation, debugging and maintenance service to customers.

9.Terms of payment
a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 60 days after received advance payment.
c.Guarantee period: 12 months.

10.Installation and training
a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.

11.After service
a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.
